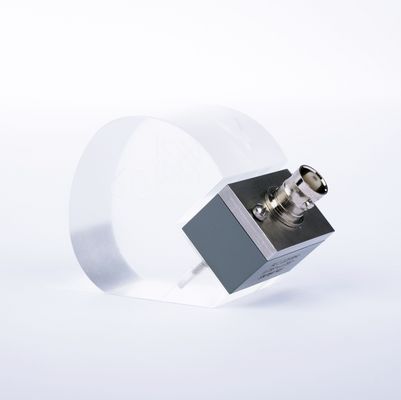

The robust ultrasonic probes with BNC connector allow a fast scanning over comparatively large areas with high precision and repeatability. Both our own and third-party wedges can be attached to our probes. Thanks to the different types of wedges various material tests can be performed.
Our ultrasonic transducers for NDT applications are manufactured according to the specific requirements of ASTM E1065 standard of the American Welding Society. Instead of conventional ceramics, highly sensitive piezocomposites produced in-house are used for the SONOSCAN probe series. An innovative manufacturing technique of the protective layer additionally ensures excellent acoustic properties of the probes, such as high sensitivity and low noise. We also offer customized probes according to your individual specifications.

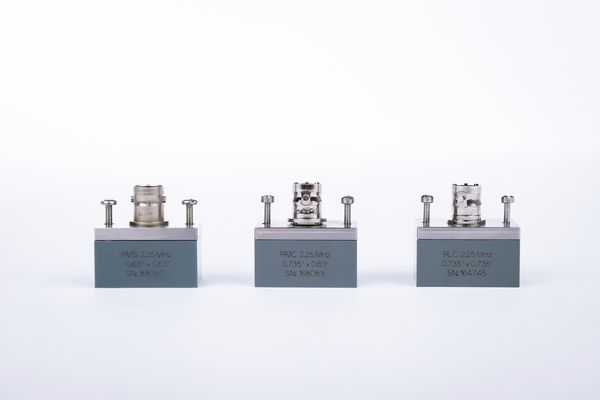

| Types | Transducer Size | Frequency | Connector |
|---|---|---|---|
| SONOSCAN RSC 2.25 | 0.63" x 0.63 | 2.25 MHz | BNC |
| SONOSCAN RMC 2.25 | 0.63" x 0.75" | 2.25 MHz | BNC |
| SONOSCAN RLC 2.25 | 0.75" x 0.75" | 2.25 MHz | BNC |

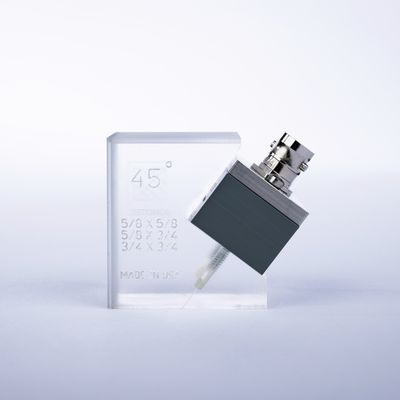

| Type | Compatibility |
|---|---|
| AWS Serrated Wedge 45° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
| AWS Serrated Wedge 60° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
| AWS Serrated Wedge 70° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
| AWS Snail Wedge 45° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
| AWS Snail Wedge 60° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
| AWS Snail Wedge 70° | for 5/8'' x 5/8'', 5/8'' x 3/4'' and 3/4'' x 3/4'' Transducer Sizes |
Feel free to contact us! We will be happy to help you.
