SONOSCAN I
Ultrasonic Immersion Probes
- Excellent acoustic properties
- Simple integration into automated test systems
- Compatibility with standard ultrasonic testing equipment
- Customer-specific adaptations possible
Applications
Partial and fully automatic testing of serial parts
Wall thickness measurement
Diameter determination
Pipe dentering
Leak testing
For Partially and Fully Automated Testing in Immersion Tanks
The SONOSCAN immersion transducers for Non-destructive Testing (NDT) are mainly used to test metals and plastics for the smallest material defects. For example, binding defects, welding defects or cracks and pores in metal parts can be detected. The powerful, robust ultrasonic probes can be connected to all common ultrasonic testing devices. Due to variable designs and sizes, the immersion probes guarantee optimal use. In addition to ultrasonic standard pobes, we also offer customized transducers according to your individual specifications.
Types

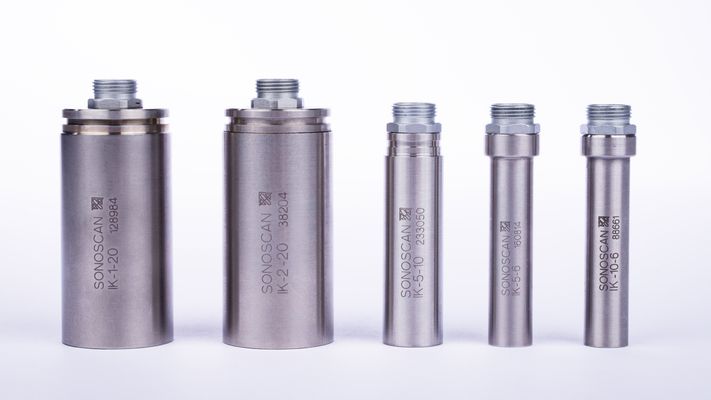

Ultrasonic Immersion Probes
| Type | Transducer Size | Frequency | Connector |
|---|---|---|---|
| SONOSCAN IK-1-20 EN | Ø 20 mm | 1 MHz | LEMO-HVR-03 |
| SONOSCAN IK-2-20 EN | Ø 20 mm | 2 MHz | LEMO-HVR-03 |
| SONOSCAN IK-5-10 EN | Ø 10 mm | 5 MHz | LEMO-HVR-03 |
| SONOSCAN IK-5-6 EN | Ø 6 mm | 5 MHz | LEMO-HVR-03 |
| SONOSCAN IK-10-6 EN | Ø 6 mm | 10 MHz | LEMO-HVR-03 |
