Ultrasonic Wall Thickness Measurement

Applications

Ideal for ultrasonic testing of heavily corroded back walls

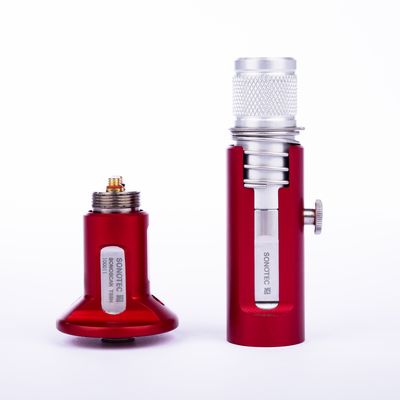

Special probes for high temperature and pipe testing

Measurement of thin wall thicknesses

General Information

Wall Thickness Measurement for Heavily Corroded Test Objects

The ergonomic dual element probes for Non-Destructive Testing from the SONOSCAN Series comply with the DIN EN 12668-2 Standard and can be used to test metals, plastics and ceramics for imperfections such as cracks, inclusions, blowholes and other discontinuities. The transmitter-receiver probes manufactured in Germany are powerful, robust ultrasonic transducers which are compatible with the ultrasonic flaw detector SONOSCREEN ST10 or the thickness gauge SONOWALL 70.

Types

Dual Element Probes (European Standard)

Type	Transducer Size	Frequency	Connector
SONOSCAN TXS7.5 EN	Ø 5 mm / 2	7.5 MHz	Dual LEMO 00 (fixed cable)
SONOSCAN TXS10 EN	Ø 5 mm / 2	10 MHz	Dual LEMO 00 (fixed cable)

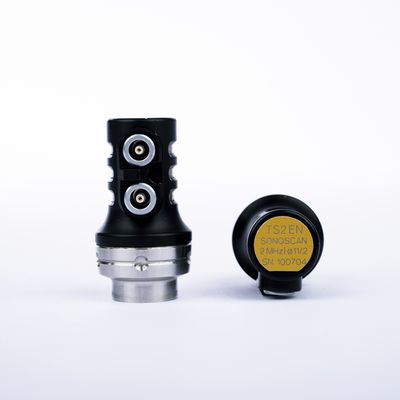

SONOSCAN TS2 EN	Ø 11 mm / 2	2 MHz	Dual LEMO 00
SONOSCAN TS4 EN	3.5 x 10 mm	4 MHz	Dual LEMO 00
SONOSCAN TS5 EN	Ø 9 mm / 2	5 MHz	Dual LEMO 00
SONOSCAN TS5H EN	Ø 8 mm / 2	5 MHz	Dual LEMO 00

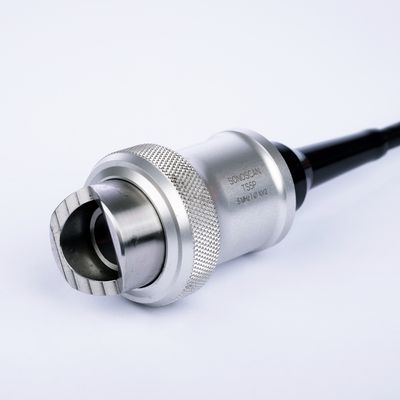

SONOSCAN TS5P EN	Ø 9 mm / 2 for Pipe testing	5 MHz	Dual LEMO 00
SONOSCAN TL2 EN	7 x 18 mm	2 MHz	Dual LEMO 00
SONOSCAN TL4 EN	6 x 20 mm	4 MHz	Dual LEMO 00

SONO-ID* Probes for SONOWALL 70

Type	Transducer Size	Frequency	Connector
SONOSCAN TS2i EN	Ø 9 mm / 2	2 MHz	Dual LEMO 00
SONOSCAN TS5i EN	Ø 9 mm / 2	5 MHz	Dual LEMO 00
SONOSCAN TXS7.5i EN	Ø 5 mm / 2	7.5 MHz	Dual LEMO 00 (fixed cable)
SONOSCAN TXS10i EN	Ø 5 mm / 2	10 MHz	Dual LEMO 00 (fixed cable)

* SONO-ID tag for intelligent probe recognition and data memory via SONOWALL 70

More Ultrasonic Probes

Standard and Customized Probess

Ultrasonic straight beam probes certified according to EN 12668-2

We offer a wide variety of standard and customized ultrasonic probes!

We also offer conventional ultrasonic gauges as well as non-contact UT systems

More about our NDT Products

Contact Us!

We will be happy to help you.

For more information regarding applications and pricing, please feel free to contact us.

Receiver: thomas.rogge@sonotec.de

Message

Salutation

Name *

Company *

Street

ZIP *

City *

Country

State

Phone *

Email *

URL

Branch

Yes, I have read and agree to the privacy policy.

Feel free to contact us! We will be happy to help you.

Thomas Rogge

Sales Manager

+49 345 13317-835

thomas.rogge@sonotec.de

Non-Destructive Testing

Name	Purpose	Duration	Type	Provider
CookieConsent	Speichert Ihre Einwilligung zur Verwendung von Cookies.	1 year	HTML	Website
fe_typo_user	Ordnet ihren Browser einer Session auf dem Server zu.	session	HTTP	Website
PHPSESSID	This cookie is used to identify the user while using onlyfy one. The cookie is absolutely necessary for correct functionality. The cookie loses its validity when the browser is closed.	session	HTTP	Xing
REMEMBERME	This cookie is used to restore an expired session. The cookie is absolutely necessary for correct functionality.	session	HTTP	Xing
visitor_id	This cookie is used to detect and rectify errors and for product organisation and planning. Only by using an analysis tool can New Work SE understand how onlyfy or individual areas are used. This is not about analysing user behaviour on an individual basis, but of all onlyfy users. (Subcontractor: Adobe Systems Software Ireland Ltd)	1 year	HTTP	Xing
prevPage	This cookie is used to detect and rectify errors and for product organisation and planning. Only by using an analysis tool can New Work SE understand how onlyfy or individual areas are used. This is not about analysing user behaviour on an individual basis, but of all onlyfy users. (Subcontractor: Adobe Systems Software Ireland Ltd)	30 minutes	HTTP	Xing

Name	Purpose	Duration	Type	Provider
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, inflight request or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	2 years	HTML	Google

SONOSCAN T

Ultrasonic Dual Element Probes

Applications

General Information

Wall Thickness Measurement for Heavily Corroded Test Objects

Types

Dual Element Probes (European Standard)

SONO-ID* Probes for SONOWALL 70

More Ultrasonic Probes

Standard and Customized Probess

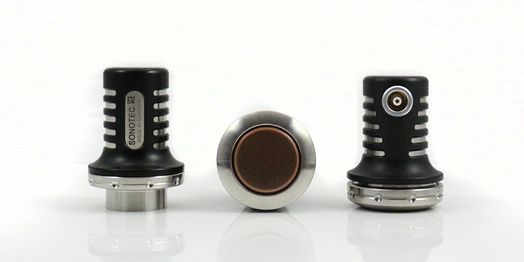

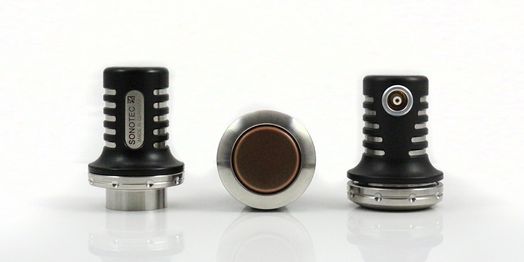

SONOSCAN P Single Element Probes
