Ultrasonic Inline Flow Meter

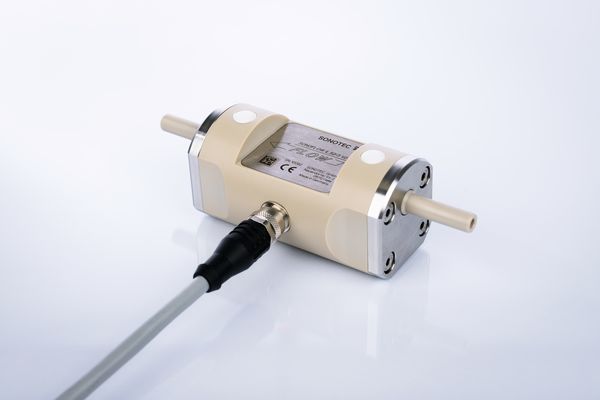

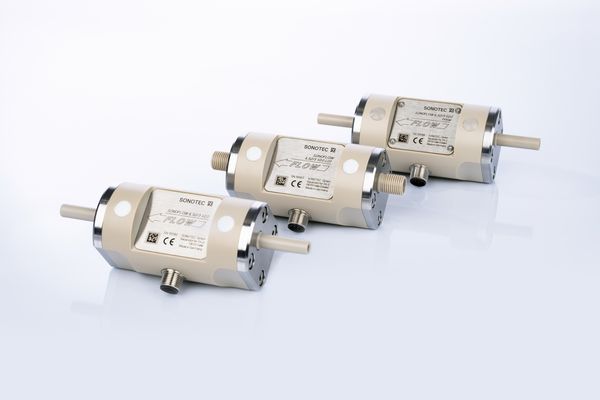

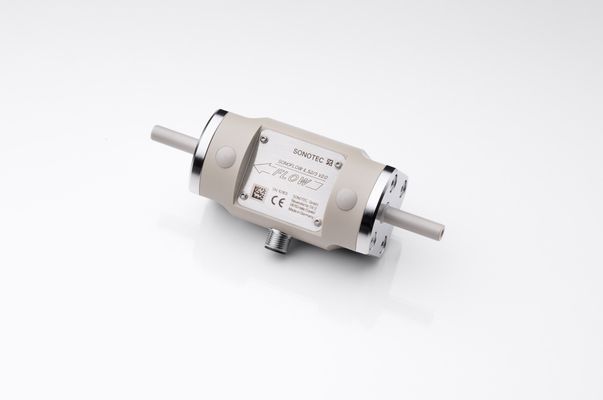

SONOFLOW^® IL.52 Inline Flow Meter for Highly Accurate Ultra-Low Flow Measurement

• Real-time flow measurement
• Volume dosing / totalizer
• Flow switch for controlling external devices

Robust & Maintenance-Free Sensor Design

Since the sensor is integrated into devices or machines and has direct contact with the medium, the parts in contact with the medium are made of high-grade PEEK material. Thus, the inline sensor is ready for sterilization-in-place (SIP), clean-in-place (CIP), and autoclave applications. In addition, the sensor impresses with its robust design, is wear- and maintenance-free and can be fitted in any position.

Excellent Measuring Performance

The SONOFLOW IL.52 monitors ultra-low flows reliably without being affected by the color and electromagnetic characteristics of the liquid itself:

• Reliable measuring of ultra-low flows
• Highly accurate (with an error of +/- 1%)
• Highly precise (with a repeatability of +/- 1%)

Easy Data Evaluation and Process Integration

A serial interface allows an easy connection to a PLC or computer. Using the C³ Software tool allows an easy sensor parameterization & calibration and readout of measuring values. It is also possible to connect the sensor to the Remote Display RD.10 for direct real-time monitoring.

• Serial interface with RS-485 Modbus protocol
• Freely configurable 0/4-20 mA current output
• Freely configurable 0-20 kHz frequency output
• Freely configurable impulse output
