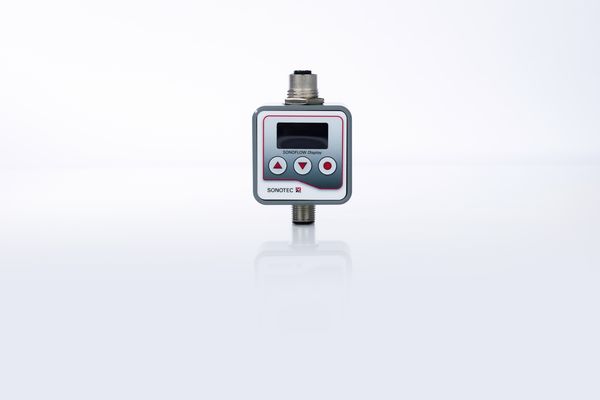

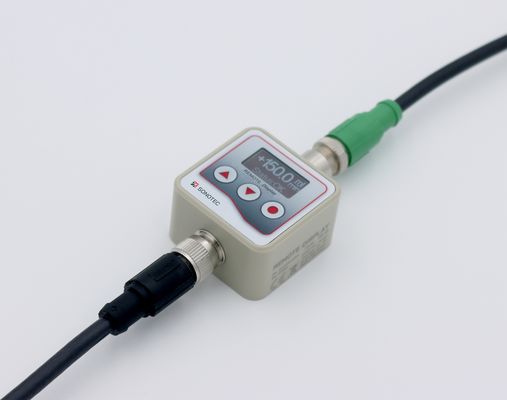

Remote Display

Remote Display for Monitoring the Performance of the SONOFLOW^® and SEMIFLOW^® Sensors

The Remote Display RD.10 can be easily connected to all SONOFLOW and SEMIFLOW sensors. The sensor accessory not just guarantees real-time monitoring of the measured values, but also ensures a clever option to operate the sensor without the need for a PC or PLC. The compact housing made of PVC-C fulfills protection class IP65 and allows a flexible use in different environments.

Get a Quote

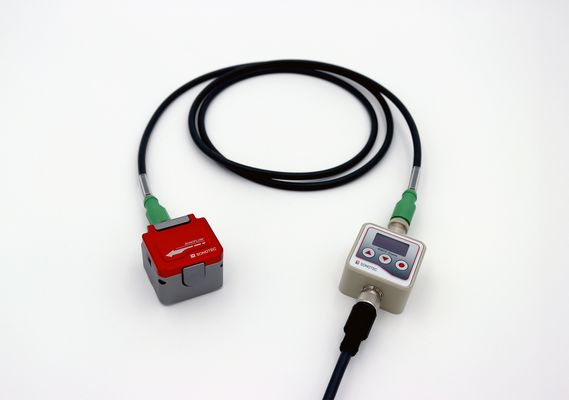

Remote Display RD.10 with SONOFLOW CO.55 Flow Meter

Product Benefits

Easy and permanent flow monitoring
Adjusting sensors for different applications
Zero adjustment and volume reset

Compact PVC-C housing
Power supply: 24 VDC (12-30 V)

Key Features

Remote Display RD.10 - Smart Sensor Accessory

Clear Visualization of Sensor Parameters

The menu-driven display shows

Flow min. / flow max. / flow real
Total volume
Media temperature
Status messages

Easy Sensor Adjustments

The Remote Display RD.10 ensures an easy remote sensor adjustment

Zero calibration
Manual volume reset

Technical Data

Dimensions (L x W x H)	68 x 44 x 27 mm
Materials	PVC-C housing
Measuring Screen	Flow, volume, temperature, min. flow, max. flow
Settings	Measurement units, sleep mode, display contrast, zero reset of sensor
Electrical Connection	8-pin M12 connector, DIN EN 61076-2-101:2012
Interfaces	0/4-20 mA, 0-20 kHz, PNP / NPN / Push-Pull, RS-485 (bus capable), digital input
Ambient / Media Temperature	0 to 50 °C, other temperatures available on request
Protection Class	IP65

Service

Calibration Service & Repair

Calibration & Repair

Downloads

Data Sheets

Remote Display RD.10
602 KB

Remote Display RD.10: Application Fields

Medical technology
Chemical industry

Biotechnology
Pharmaceutical industry

Semiconductor industry
