LevelMeter^® App

When used in conjunction with innovative sensor technology and the LevelMeter software, your SONAPHONE® turns into a multi-functional ultrasonic testing device. The software for preventive maintenance is intuitive to operate and assists you through the entire testing process.

The LevelMeter^® software provides you with a comprehensive measurement and analysis solution for the following applications:

mySONAPHONE.com

Get exclusive access to software updates and new software products for your SONAPHONE.

Technical Data

General Data

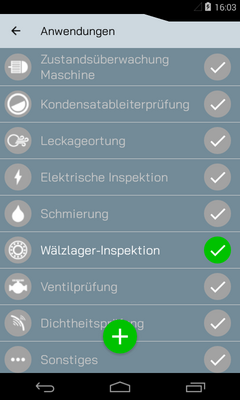

Functions	Taking photos to add to data sets or measurements Adding markers directly after taking a photo Recording voice memos to add to data sets or measurements Adding text comments Selecting the current application (leak, bearing etc.) as context for measurements Creating PDF reports of selected data sets Exporting selected data sets for further processing on the computer (e.g. in DataViewer)
Saving and Recording	Format audio data: *.wav Storage location: Internal measurement storage
Memory Requirements	Per second of measurement time Level 1 kB Spectra 31 kB Audio 16 kB Per minute of measurement time Level 88 kB Spectra 2 MB Audio 1 MB Data organization: Hierarchical in data sets and measurements

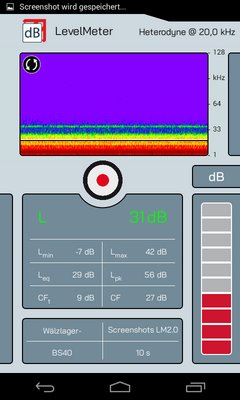

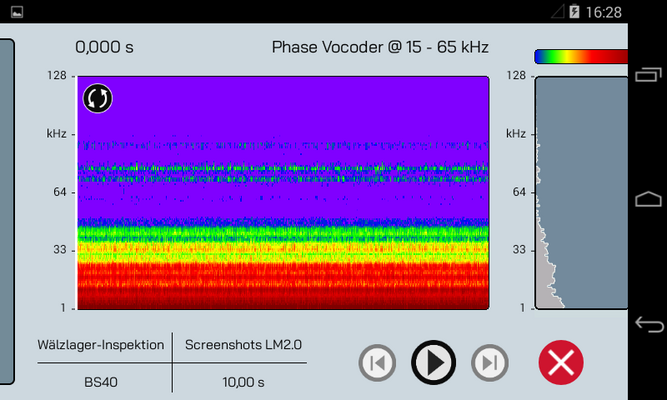

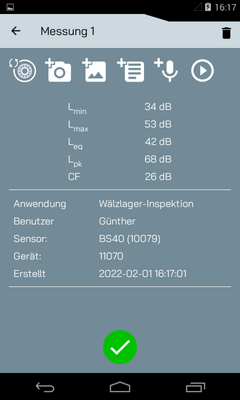

Displays	Level graph (only the "main" level – highlighted in green, freely selectable) Level wheel and level bars (instantaneous level only) Level table, configurable in terms of layout, number (max. 5) and type of displayed levels The following sound pressure levels can be displayed, as well as the temperature (T, only active with structure-borne sound sensor BS20): L – Instantaneous level LF – Instantaneous level with time weighting Lpk – Peak level Leq – Equivalent continuous sound level Lmin – Minimum value of instantaneous level Lmax – Maximum value of instantaneous level (in dB, reference p0 = 20 µPa, temporal resolution: 16 ms per level value) Spectrogram (temporal resolution: 16 ms per frequency spectrum) Portrait/landscape changeover Measurement time, playback position
Operating Modes	Live – display of current measured values Recording – display and saving of current measured values Playback – playing of saved measured values
Languages	German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian, Turkish, Chinese

Downloads

Short Instructions SONAPHONE & LevelMeter App
2 MB
Operating Manual SONAPHONE
838 KB
