BS30

Broadband Parabolic Sensor for Leak Detection and Electrical Inspection up to 35 M

Advantages at a Glance

Detects ultrasonic frequencies from 15 kHz to 100 kHz
Scanning range up to 35 meters

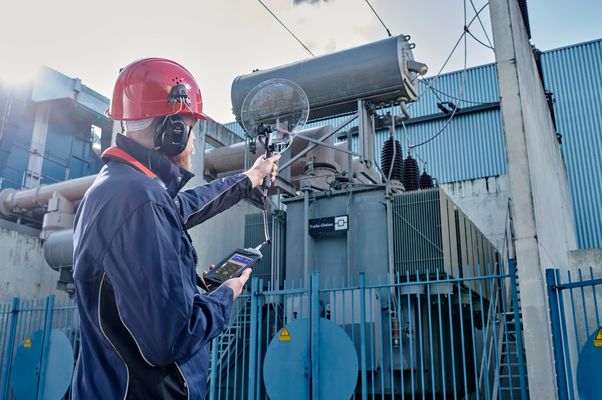

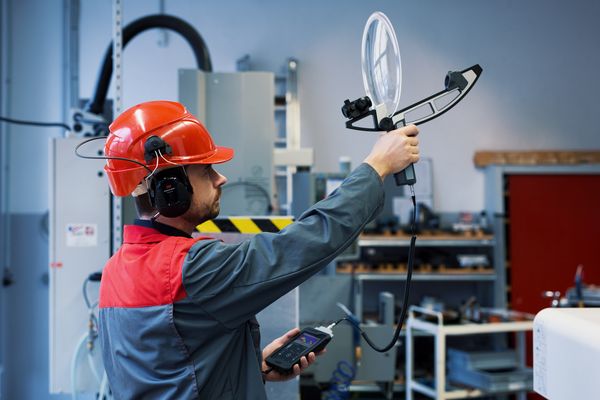

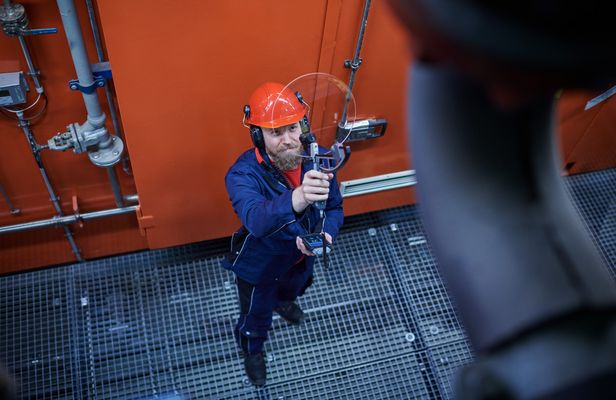

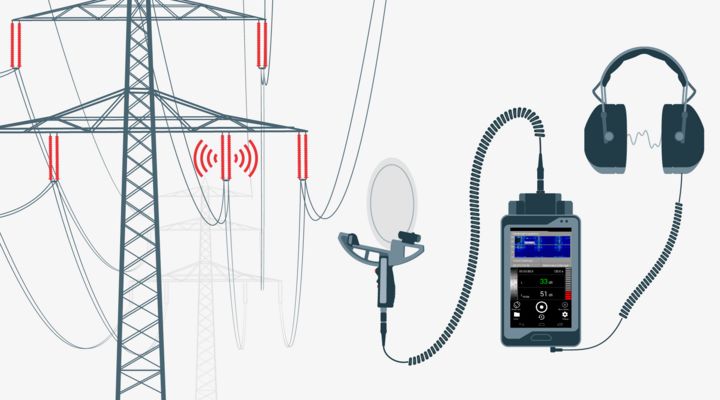

Applications: Leak Detection, Tightness Testing, Electrical Inspection

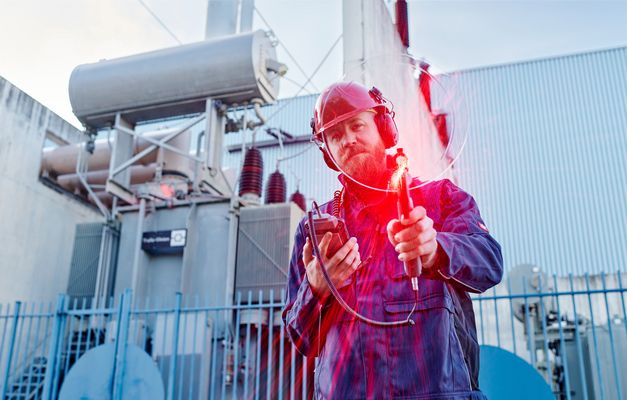

Reliable direction finding with integrated target laser and adjustable red dot sight
High directivity and sensitivity
Insensitive to background noise within the audible range
Ergonomic and lightweight

Get a Quote

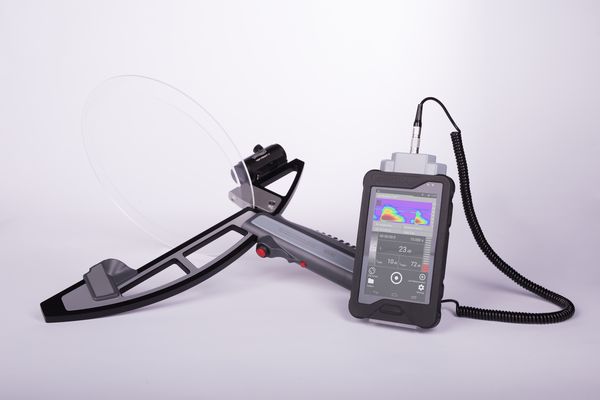

Ultrasonic Sensor BS30 Preventive Maintenance

General

The BS30 parabolic sensor has been specially designed for the following tasks:

Scanning range 35 meters

The parabolic sensor is used for the accurate detection of ultrasonic waves over distances of up to 35 m.

Frequency range 15 kHz to 100 kHz

Simultaneous analysis of the ultrasound frequency range between 15 kHz to 100 kHz

Target laser and red/green dot sight

The target laser and the red/green dot sight also help with the precise location of damage areas. If the sensor points towards the damage area during the search, the precise location can be detected by means of acoustic signals, by pivoting the sensor and searching for a local maximum sound level. The target laser and the red/green dot sight highlight the position of the damage.

Technical Data

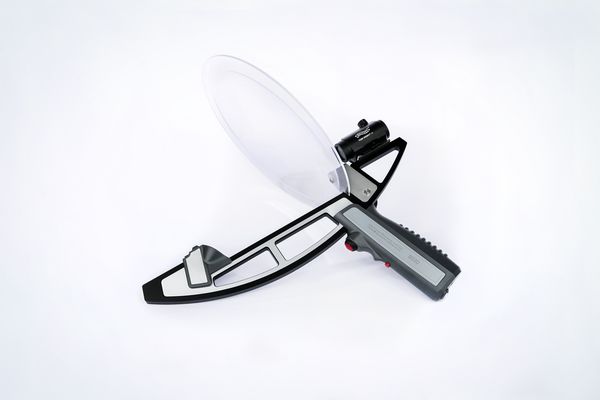

Design	Sensor with Parabolic Reflector for the Detection of Airborne Ultrasound Signals at Distances of up to 35 m, Target Laser (class 2) and Red/Green Dot Sight
Operation	Via Buttons on the Sensor or on the Device: Start/stop Testing Laser on/off (press and hold Button)
Frequency Range	15 kHz … 100 kHz
Measurement Resolution	1 dB
Power Supply and Communication	Cable Connection with the SONAPHONE (160 cm): LEMO Connection
Dimensions (W x H x D)	270 x 440 x 390 mm (when assembled)
Reflector Diameter	270 mm
Weight	750 g
Materials	Sensor: Aluminum, Polycarbonate, ABS

Ambient Conditions

Operating Temperature	-10 °C … +65 °C
Storage Temperature	-20 °C … +65 °C
Protection Type	IP40
Standards and Guidelines	EMC Directive 2014/30/EU WEEE Directive 2012/19/EU RoHS Directive 2011/65/EU ASTM E1002-2005
Sensor Accessories:	Light Spot Target Device, Transport Case
Optional Accessories	Sensor Cable

Target Laser

Wavelength λ	630 … 680 nm
Laser Dot Size	< 20 mm at 10 Meters
Deviation	2 mrad (Divergence Angle: 0.11°)

Downloads

Brochure Parabolic Sensor BS30
912 KB
BS30: Operation Manual
3 MB
